TBS

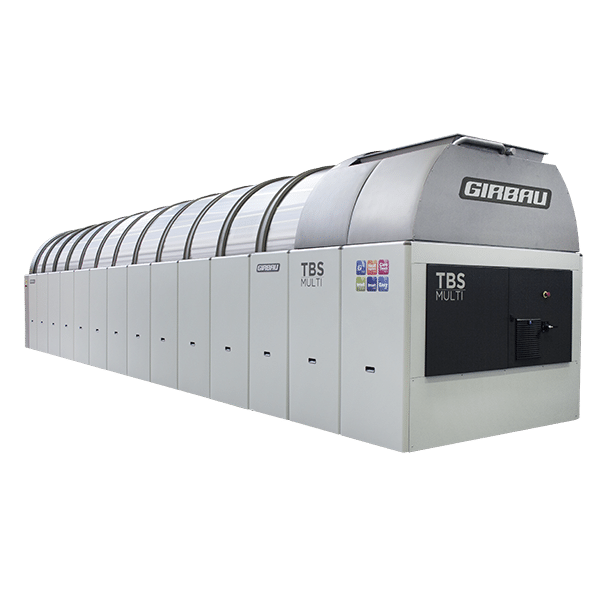

TBS-50

Designed to meet any laundry need, Girbau Industrial Batch Washers deliver the ultimate in flexibility, efficiency and wash quality. Thanks to a convenient top-transfer, mono-block design, the TBS-50 Batch Washer is less costly and simpler to install than comparable machines on the market, uses less water and energy, runs quietly and delivers a quality wash for any fabric type. Designed for today and tomorrow, the TBS-50 is an extremely flexible tunnel washer that can be configured according to the unique needs of any high-volume laundry.

MODEL TBS-50/5 TBS-50/6 TBS-50/7 TBS-50/8 TBS-50/9 TBS-50/10 TBS-50/11 TBS-50/12
Capacity (per cylinder) lbs. (kg.) 110.2 (50)
outer Cylinder diameter in. (mm.) 76.8 (1950)
inner Cylinder diameter in. (mm.) 72.8 (1850)
Cylinder depth in. (mm.) 30.7 (780)
Cylinder volume cu. ft. (dm.3) 74.2 (2100)
number of Wash lifters   7
Washing angle   270˚
Transfer diameter in. (mm.) 33.5 (850)
Transfer angle   450˚
net Weight lbs. (kg.) 12,677 (5750) 13,889

(6300)

15,101

(6850)

16,314

(7400)

17,526

(7950)

18,739

(8500)

19,951

(9050)

21,164

(9600)

Max. Working Weight lbs. (kg.) 19,841

(9000)

22,487 (10,200) 25,132 (11,400) 27,778 (12,600) 30,423 (13,800) 33,069 (15,000) 35,714 (16,200) 38,360 (17,400)
machine Width in. (mm.) 85 (2160)
machine length in. (mm.) 214.5

(5448)

245.4

(6232)

276.2

(7016)

307.1

(7800)

338

(8584)

368.8

(9368)

399.7

(10,152)

430.6

(10,936)

machine height in. (mm.) 112.1 (2848)
opening height in. (mm.) 30.6 (777)
Washing Speed rpm 2-8
Max. Pressure to Floor pSi (kg./cm.2) 313 (22) 341 (24) 370 (26) 412 (29) 441 (31) 469 (33) 498 (35) 526 (37)
